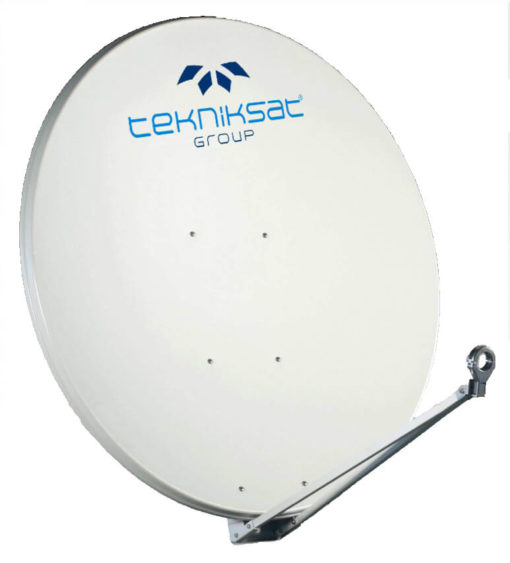

OP 150 S

Frequency range (GHz) -> 10.00 – 13.00

Outside dimension (cm) -> 155.0 x 166.0

Reflecting dimension (cm)-> 150.0 x 161.0

Illumination efficiency * (%) -> 70

Gain * @ 10.70 GHz (dB) -> 43.00

Gain * @ 11.70 GHz (dB) -> 43.70

Gain * @ 12.75 GHz (dB) -> 44.50

Cross polarization * on axis (dBc) -> 28

First side lobe level * (dBc) -> -25

Noise temp. * @ 12GHz, 36° elevation (K) -> 31

F/D radio -> 0.66

3dB Beam width* @ 12GHz -> 1.07°

Offset pointing angle -> 21.3°

Feed illumination angle -> 70°

Feeder clamp (mm) -> 40/23

Elevation angle -> 20°-90°

Mast clamp (mm) -> 55-100

Alu reflector thickness (mm) -> 2.0

Steel reflector thickness (mm) -> Steel dish not available

Wind load @ 120 km/h (kg) [worst-case] -> 250

Net weight Alu dish+mount (kg) -> 28.8
